How to use Update USB Maker

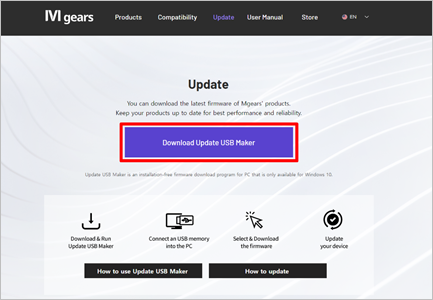

1. Download ‘Update USB Maker’ from the Mgears homepage.

----------------------------------------------------------------------------------------------------------------

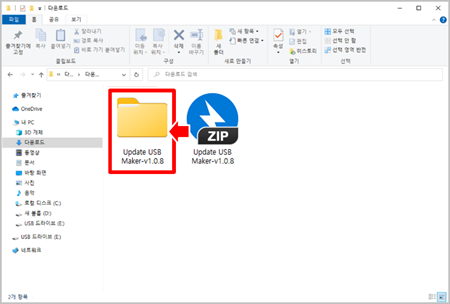

2. Unzip ‘Update USB Maker-v0.0.0.zip’ when download is completed.

----------------------------------------------------------------------------------------------------------------

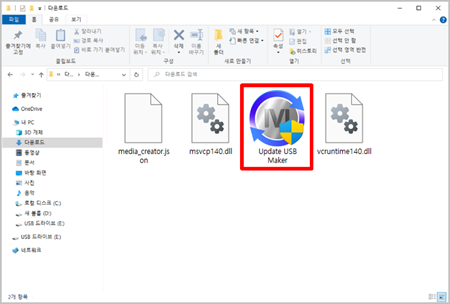

3. Insert a USB flash drive of at least 4GB or more into the USB port of your PC

and run ‘Update USB Maker.exe’ in the unzipped folder.

----------------------------------------------------------------------------------------------------------------

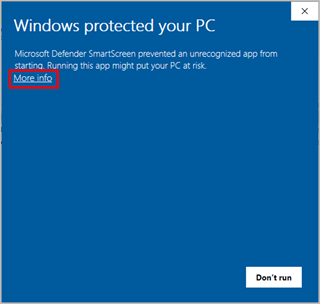

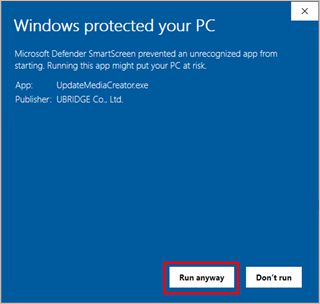

3-1. When the SmartScreen pop-up appears, select ‘More info’ and the ‘Run anyway’ button.

----------------------------------------------------------------------------------------------------------------

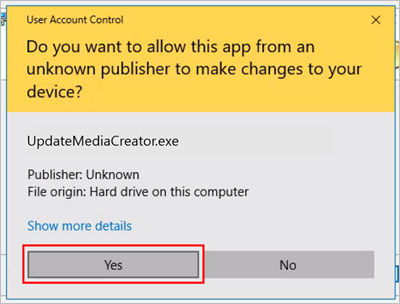

3-2. When the User Account Control pop-up appears, select the ‘OK’ button.

----------------------------------------------------------------------------------------------------------------

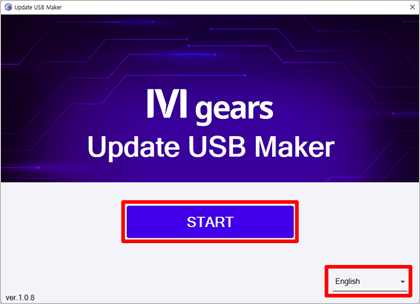

4. Select your language and the ‘START’ button.

----------------------------------------------------------------------------------------------------------------

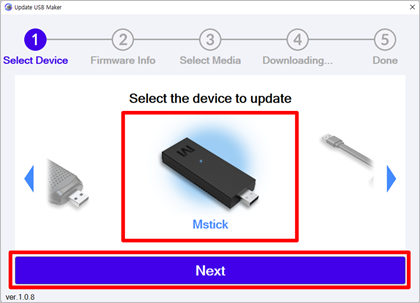

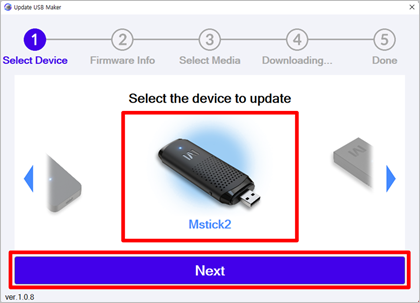

5. Select your device and the ‘Next’ button.

----------------------------------------------------------------------------------------------------------------

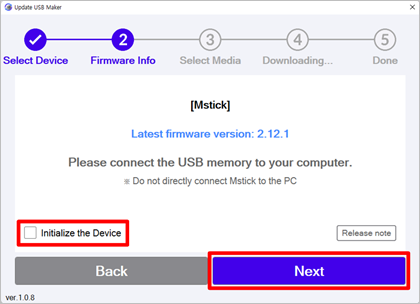

6. Check the firmware version and select the 'Next' button.

※ If recovery firmware is needed, check 'Initialize the Device' and proceed.

----------------------------------------------------------------------------------------------------------------

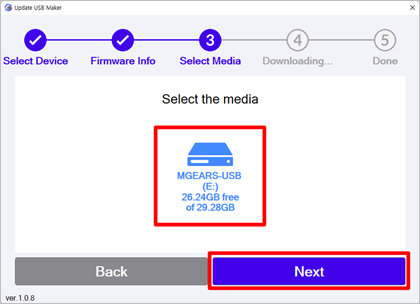

7. Select the USB flash drive inserted in step 1 as the storage and the ‘Next’ button.

* The USB flash drive will be formatted during the process. Please back up important data in a separate storage in advance.

----------------------------------------------------------------------------------------------------------------

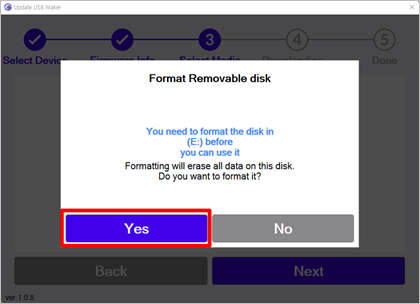

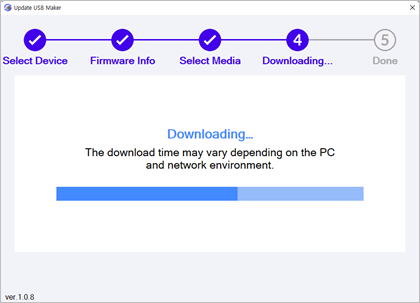

8. If you select the ‘Yes’ button in the confirmation popup, the update file download and copy will proceed automatically.

(It may take some time depending on internet conditions and usage environment.)

* Do not remove the USB flash drive from the PC until all processes are completed.

----------------------------------------------------------------------------------------------------------------

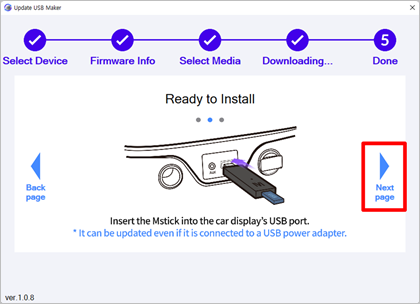

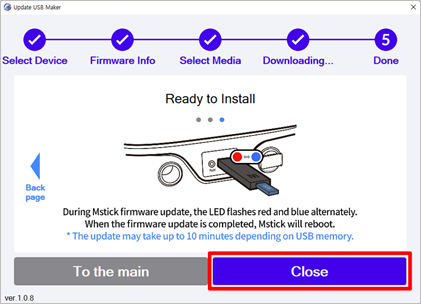

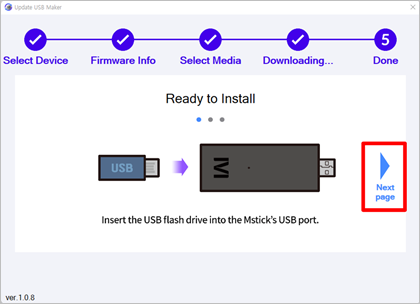

9. When the installation is ready, follow the instructions to close the program and update your product.

* Do not remove power from the device during the update.
