1. Embedded Processor 2. Interactive DID 3. VoIP Phone 4. WURC



 1. Embedded Processor



 1_1. Marvell’s Monahans PXA320 806Mhz Platform

  • The world's first 806Mhz navigation
  • Value-added function with Dual T-DMB, Bluetooth 2.0
  • Customized Windows CE 5.0 BSP
  • Development of the Wall-PAD required strong reliability
H Co.

Provia A7 (2007)

M&Soft MAPPY 5.0


--------------------------------------------------------------------------------------------------------------
S Co.

SM-8082 (2008)

SK M&C EnNavi 3.0


--------------------------------------------------------------------------------------------------------------
S Co.

Wall Pad(Home Automation)

(2008, developed 3 types model)


--------------------------------------------------------------------------------------------------------------
H Co.

MN70LE (2008)

M&Soft MAPPY 5.0


--------------------------------------------------------------------------------------------------------------
S Co.

S3LIVE (2009)

SK M&C EnNavi 3.0


--------------------------------------------------------------------------------------------------------------



 1_2. Samsung S3C6400/6410 Platform

  • Advanced development for Samsung LSI System
  • Customized platform for Power Management System
  • Using for a VEGA platform that Ubridge's smart phone
  • Development of the security devices based on a VEGA project(2009-2010)
S Co.

SM-HUVI (2009)

SK M&C EnNavi 3.0


--------------------------------------------------------------------------------------------------------------
S Co.

SM-8082 Basic (2009)

SK M&C EnNavi 3.0


--------------------------------------------------------------------------------------------------------------
T Co.

Home Media Terminal(2009)



--------------------------------------------------------------------------------------------------------------



 1_3. Sirf Prima 600Mhz 2D/3D Platform

  • Development of navigation based on Sirf Prima
  • Map supporting for 2D/3D Navigation and the merchandising(GINI 3D, Rousen 3D)
  • Product development for SKN, Meister, Woongjin Holdings and Digital Cube
S Co.

SM-SAVE Season 2 (2009)

Atlan Wiz


--------------------------------------------------------------------------------------------------------------
H Co.

MD100 (2009)

M&Soft GINI


--------------------------------------------------------------------------------------------------------------
W Co.

WG-M/T/B09 (2009)

M&Soft GINI 3D/2D


--------------------------------------------------------------------------------------------------------------
W Co.

W400/500 (2010)

M&Soft GINI 2D


--------------------------------------------------------------------------------------------------------------
D Co.

S7 (2010)

M&Soft GINI


--------------------------------------------------------------------------------------------------------------
H Co.

V7000 (2010)

M&Soft GINI


--------------------------------------------------------------------------------------------------------------
H Co.

MF100 (2010)

M&Soft GINI


--------------------------------------------------------------------------------------------------------------

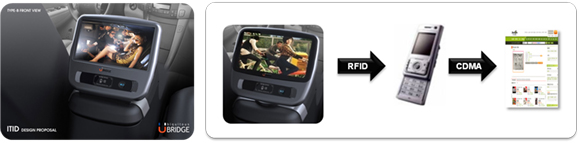

 2. Interactive DID(T-Life Service) : Taxi Information Display



Form Factor : TAXI Information Display

  • CPU : Marvell PXA320-806Mhz
  • OS : WinCE 5.0
  • Memory : SDRAM 128~256 MB / NAND 128MB
  • Display : 7" SVGA 800 X 480 TFT LCD with TSP
  • Expansion : SD Slot, USB 2.0 Host / Slave
  • One Segment : 1ch SW One Segment
  • Key & Indication : Volume UP/DN, Power, MENU, Channel UP/DN, LED
  • Sound : 1w Speaker x 2
  • Interface : AV/Video in, External GPS,DMB ANT,Power(DC/IN),Line Out,FMT

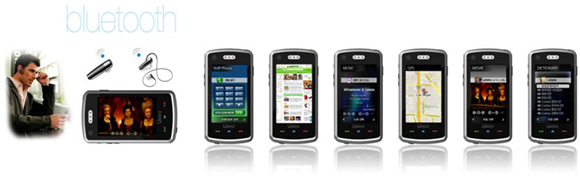

 3. Vega - VoIP Phone(Premium Mobile Wi-Fi/Wibro VoIP Phone)




Form Factor : Premium Mobile Wi-Fi / Wibro Phone

  • CPU : S3C6410(ARM1176JZF-S, 667/800MHz)
  • Memory : DDR-SDRAM 128MB
  • Nand Flash : 128MB, 4GB, 8GB
  • LCD : 3.3" AMOLED LCD
  • Camera : 330,000 pixels CMOS
  • Touch : Resistive
  • Option : T-DMB, GPS

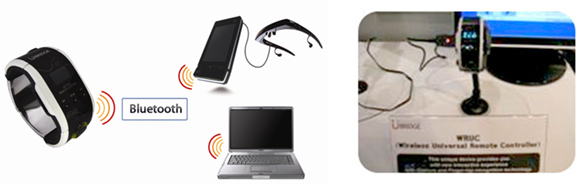

 4. WURC(Wireless Universal Remote Control) (Concept Product)



Form Factor : Bluetooth based Wrist type Remote Controller

  • CPU : Freescale i.mx21 133MHz / 66MHz
  • Memory : 2MB SRAM, 8MB NOR Flash
  • ADC : Convert analog sensor data into digital signal
  • Communication : BlueCore3-MM Firmware (AVRCP, SPP supported)
  • Device Driver : UART( Bluetooth/console), 12C(IrDA, OLED) SPI(ADC), GPIO(Touch button, LED), RCT(Watch)
  • GUI : Microwindows
  • OS : Embedded Linux 2.4.20
